Please see http://www.bugscep.com/help for information on citing BugsCEP correctly.
To find information about a
species |
BugsCEP contains the following data for each
species (note that not all species have data in all fields):
referenced extracts from texts on ecology & distribution; synonyms,
UK RDB (Red Data Book) status; Quaternary fossil record; coded ecological
summary (two systems); taxonomic notes; size attributes
|
- Make sure the BugsCEP screen is visible (use the toolbar to
get there)
- Use the drop down box on the left of the screen titled "Genus"
to locate the desired Genus - You can either use the scroll bars
that appear to move alphabetically, or you can type the Genus
into the box - Bugs will search as you type, so entering the
full Genus is usually not necessary - press ENTER when your Genus
appears in the box.
- Select the appropriate Species from the list titled "Species
in Genus" underneath the Genus box. The details of this
species will be shown, and the full species name displayed towards
the top of the screen.
- Both the up/down arrows under the "Species in Genus"
list, and the Page Up/Page Down keys allow you to move
through species taxonomically. (Note that the keys will not
have this function if a text box is selected
- Use the data tabs (shown below) to read the relevant information...
|
|
|
|
|

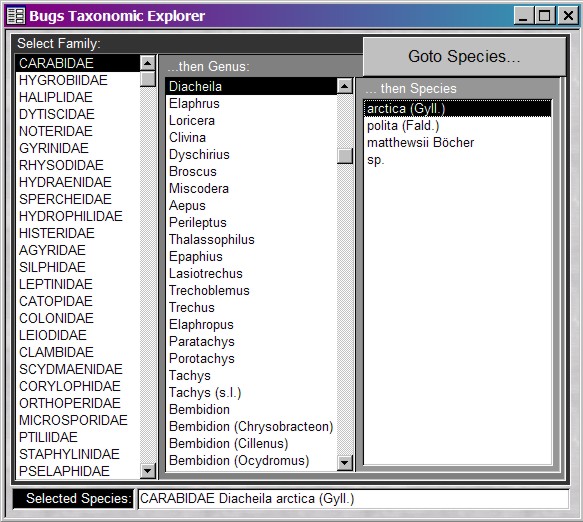

Alternatively, you can find a species using the Taxonomic Explorer
(shown below), which pops up when you click on the [TaxoBrowser]
button. |
|
There is also the CODEBrowser - which
allows you to browse and search using the European taxonomic codes
(Bugs modification) |

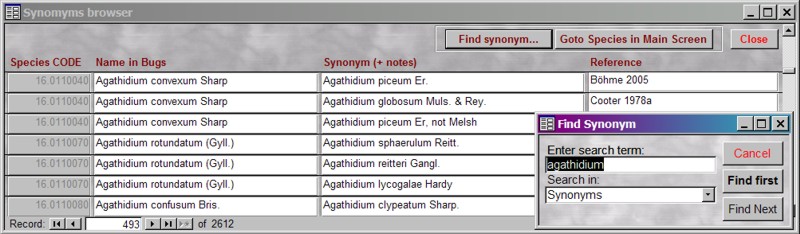

To find a species by a synonym |
- Click the [Synonyms Browser] button on the main BugsCEP screen.
- Search for the synonym with the [Find synonym] button
- Press the [Goto Species in Main Screen] button to show the data
for the species
|
|
Print or save the details
of ONE species |
- Find the species as described above.
- Click the [Export] button in the bottom left corner.
- Confirm the export on the popup by clicking continue.
Note that the export system uses part of the BugsCEP
Search System, so if you have a search active it will be aborted...

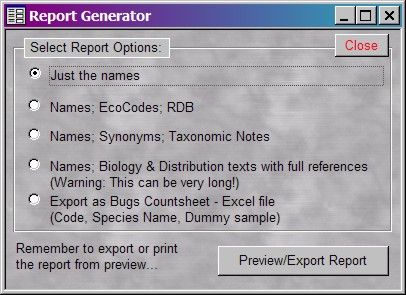

- Choose the type of export from the selection list, and click
[Preview/Export Report].
- The report preview screen will open from which can:
- Print it by either clicking the [Print] button
- Export it to MS Word
- Export it to MS Excel
Remember to save the report in Word or Excel!
- Click [Close Report Preview] when you are finished.
|
|
Notes:
- Export of reports other than countsheets to Excel can be unpredictable
in terms of layout, and not always useful.
- The 'Just the names' report is pretty useless for jsut one species! |
To see the fossil record for a
species |
Fossil records are enumerated from the abundance
data stored within dated samples for the sites. Choosing 'All Samples'
on the options will also list all occurences that are not dated -
such as modern collection data.
|
- Find the species as described above
- Click the [Fossil/Site Records] tab towards the top of the screen
- Choose the type of dating evidence - Calendar/Radiometric/Period
- You can choose to show either:
- Only records where the species is found in samples that have
been assigned a date, or
- All records where the species is present
The latter will show sites where dating evidence is either
missing or irrelevant.
|
|
- From this screen you can click the [Show Selected Site] button
to show summary information for any site listed. You can then
access references, details of the dating evidence and countsheets
for the site, or even create a variety of reports from the site
data.

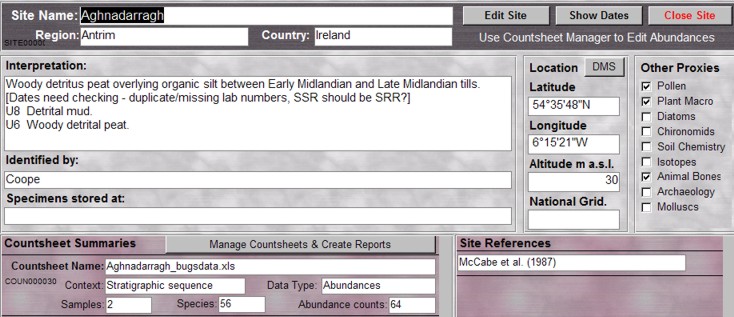

- The site information screen for Aghnadarragh in County Antrim,
Ireland* is shown
below. Abundance data is accessed through the [Manage Countsheets
& Create Reports] button.
|
|
* References
McCabe, A.M., Coope, G. R., Gennard, D. E. & Doughty, P. (1987).
Freshwater organic deposits and stratified sediments between Early and
Late Midlandian (Devensian) till sheets at Aghnadarragh, County Antrim,
Northern Ireland. Journal of Quaternary Science, 2, 11-34.
|
